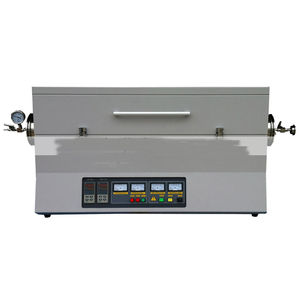

O1200 Two-Zone Vacuum Tube Furnace O1200-60IIC
Description
1200℃ Two-Zone Vacuum Tube Furnace uses Resistance Wire as heating element. Max. temperature inside furnace can be reached at 1200℃ under vacuum or flowing gas. The furnace temperature profile can be set up by 30 segments and run automatically by the 708P type advanced temperature controller. It is excellent for material research, ceramic research labs to develop various new materials.
Features
1. Operation Temperature: 1100℃ (1200℃ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 or 50 segments programmable.
Descriptions
1. Operation Temperature: 1100℃ (1200℃ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 or 50 segments programmable.
Descriptions
Chamber Size | Ø80(OD)x1200mm (ID-74mm) |
Length of Heating | 200+200mm |
Working Temperature | 1100℃ (continuous) |
Maximum Temperature | 1200℃ (for short time) |
Temperature Control | 30 steps programmable and PID automatic control |
Heating Rate | 0~15℃/min (suggestion: ≤10℃) |
Temperature Accuracy | +/-1℃ |
Heating Element | Resistance wire |
Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
Max. Power | 7 KW |
